What are the factors that affect the thermal efficiency of graphite vacuum furnace heating chamber?

The thermal efficiency of a graphite vacuum furnace heating chamber depends on its design, materials, insulation system, and operating conditions. Since this type of furnace is widely used for high-temperature applications (such as sintering, brazing, and heat treatment of alloys, ceramics, and advanced materials), efficiency is a critical performance metric.

Factors Affecting Thermal Efficiency of Graphite Vacuum Furnace Heating Chamber

The thermal efficiency of a graphite vacuum furnace heating chamber is influenced by several key factors. Understanding these can help optimize the design and operation for better performance.

Insulation Design and Material:

Type of Insulation: The primary insulation in graphite vacuum furnaces is typically graphite felt, rigid graphite board, or carbon composite materials. The thermal conductivity of these materials directly impacts heat loss.

Thickness and Layers: Thicker insulation layers and multiple reflective graphite foil shields reduce radiative and conductive heat transfer out of the hot zone.

Density and Porosity: For felt and board, material density and pore structure affect its insulating properties. Higher density often means lower thermal conductivity up to a point.

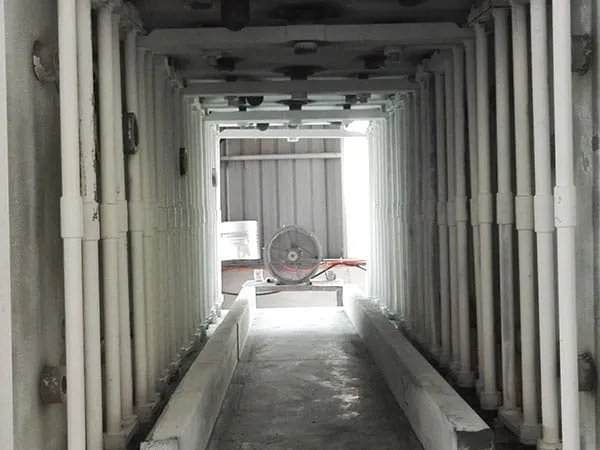

Heating Element Design:

Material: Graphite heating elements are standard, but their geometry (e.g., rods, mesh, woven cloth) affects surface area and emissivity, influencing heat transfer to the workload and surrounding insulation.

Configuration: The arrangement of heating elements (e.g., cylindrical, rectangular) impacts temperature uniformity and radiative heat transfer patterns within the chamber.

Vacuum Level:

Convective Heat Transfer: At lower vacuum levels (higher pressure), residual gas molecules within the furnace can contribute to convective heat transfer from the hot zone to cooler parts of the chamber, reducing efficiency. As vacuum improves (lower pressure), convection becomes negligible, and radiation dominates.

Gas Purity: The type of residual gas can also play a minor role, though less significant than pressure itself.

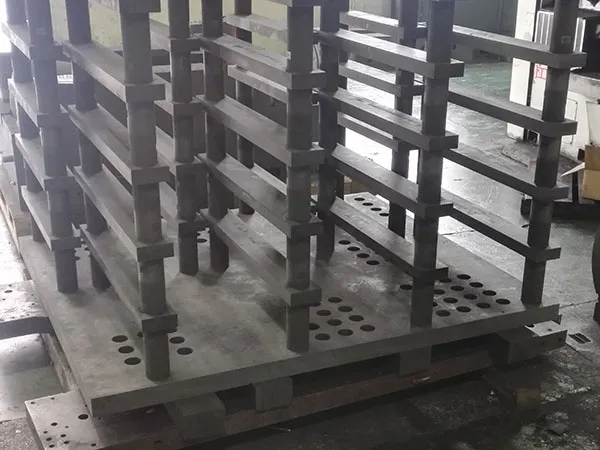

Workload Characteristics:

Material and Emissivity: The material being heated and its surface emissivity determine how effectively it absorbs radiant heat from the heating elements.

Mass and Geometry: A larger, denser workload requires more energy to heat up. The shape and arrangement of the workload can also affect heat distribution and absorption.

Loading Density: How tightly the workload is packed within the hot zone can influence heat penetration and uniformity.

Operating Temperature:

Radiation Dominance: At higher temperatures, radiative heat transfer becomes increasingly dominant. This means that insulation designed to reflect or absorb radiation effectively is crucial for efficiency.

Heat Loss: The temperature difference between the hot zone and the outer shell drives heat loss; higher operating temperatures generally lead to higher absolute heat loss.

Cooling System Design:

Water Cooling Channels: The design and efficiency of external water cooling channels on the furnace shell are critical for maintaining the integrity of the vacuum vessel, but they also represent a pathway for heat loss from the furnace interior. Minimizing heat transfer to these channels is important.

Hot Zone Size and Geometry:

Surface Area to Volume Ratio: Larger hot zones generally have a more favorable surface area to volume ratio, which can lead to better thermal efficiency, as heat loss is proportional to surface area while stored energy is proportional to volume.

Openings/Ports: Any openings for thermocouples, sight ports, or gas inlets/outlets can be pathways for heat loss if not properly designed and insulated.

Power Control and Cycling:

PID Control: Efficient PID (Proportional-Integral-Derivative) control systems can minimize overshooting and undershooting of target temperatures, reducing wasted energy.

Batch vs. Continuous: Batch furnaces involve heating and cooling cycles, while continuous furnaces maintain temperature. The overall efficiency can depend on the processing schedule.

Summary

A graphite vacuum furnace heating chamber is highly efficient due to graphite’s excellent thermal and electrical properties, combined with vacuum operation that minimizes convection losses. With advanced insulation and power control, thermal efficiency typically ranges 70-90%, making it one of the most energy-efficient high-temperature furnace technologies.
